How To Make a Portable USB Charger Circuit Diagram Hi, in this Instructable I want to show you, how to create your own Bicycle USB charger for a bicycle dynamo for less than 10โฌ. This summer, I took an bicycle tour with my friend for around two weeks and we had the problem that we don't had access to a power socket to charge our batteries for our GPS devices and smartphones. So I searched for an solution. The only devices that I successfully managed to charge with the plug are a small usb powered bike light and a Goal Zero 3000mah power bank (they are used with solar panels). And for the powerbank I would charge half of it in a full day (~100kms) ride. These chargers work by converting the rotational energy from a bicycle's wheel into electrical energy, which can then be used to charge devices such as smartphones, GPS devices, or bike lights. While bicycle dynamo chargers are a convenient and eco-friendly way to keep your devices powered while out on a ride, there are some safety precautions
The USB Charger for Bike is a versatile device designed to convert the electrical energy generated by a bicycle's dynamo or battery into a USB-compatible output. This allows cyclists to charge electronic devices such as smartphones, GPS units, and other USB-powered gadgets while riding. Understanding the role of each component and choosing high-quality parts is essential for ensuring the performance, reliability, and safety of the USB charger. The power supply circuit forms the heart of the USB charger, responsible for converting the incoming AC voltage to the DC voltage required for charging devices.
10โฌ BICYCLE USB CHARGER : 11 Steps (with Pictures) Circuit Diagram
This instructable will show how to build a USB charging port for an electric bicycle. This project is basically a DC-to-DC converter which takes power from the main battery of an electric bicycle (usually 24V, 36V or 48V) and converts it down to 5V needed to power a USB charging port. Connect the USB Device: Plug your USB device into the USB Type-A port of the charger. Mounting: Securely mount the USB charger on your bicycle frame using zip ties or a mounting bracket to prevent it from moving during the ride. Important Considerations and Best Practices. Voltage Range: Ensure the input voltage is within the specified range

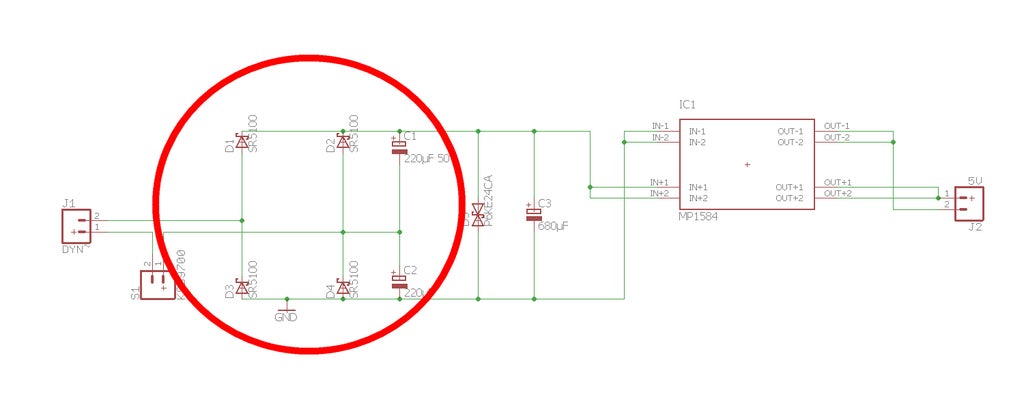

Most bicycle dynamos are alternating current (AC) and will therefore require a bridge rectifier to give you DC from the AC input. There are countless DIY articles online with circuit diagrams and part suggestions, some of which include: DIY Bicycle Dynamo USB Charger for Smartphones and Battery Packs; Dynamo powered LED bike lights
